Highlights

• Rolls Royce Corporate Care
• APU enrolled on Honeywell MSP
• FANS 1A / CPDLC / ADS-B Out Version 2
• HUD with EVS
• Starlink, February 2025
• ATG 4000 High Speed Internet
• Aircell Axxess

Airframe

• 2010 Airframe
• TOTAL TIME: 3,737.9
• LANDINGS: 1,979

Engines

• Rolls Royce TAY Mk 611-8C
• Enrolled on Rolls Royce Corporate Care
• Serial Numbers: 85403 (left) and 85404 (right)
• 3,710.5 / 3,710.5 Hours SNEW
• 1,961 / 1,961 Cycles
• TBO: 12,000
• 897 hrs since 10-year Midlife (Completed Feb 2021)
• Engines On Hard Time

APU

• Honeywell GTCP-36-150GIV
• Serial Number: P-314
• 2,626.2 Hours SNEW
• Enrolled on Honeywell MSP

Weight

• MAX RAMP WEIGHT: 75,000 Lbs.
• MAX TAKE-OFF WEIGHT: 74,600 Lbs.
• MAX LANDING WEIGHT: 66,000 Lbs.
• ASC 007D Maximum Landing Gross Weight - 58,500 Pounds
• BEW: 42,352 Lbs.
• MAX ZERO FUEL: 49,000 Lbs.

Capabilities

FANS 1/A - BRNAV - Synthetic Vision - FM Immunity - RVSM - CPDLC - VNAV - 8.33 Spacing - HUD w/EVS - MNPS - ADS-B Out V2 - RNP Capable - TCAS 7.1 - Auto Throttles - WAAS / LPV - TAWS - RAAS - EVAS - Lightning Detection - XM Weather - Electronic Chart

Avionics

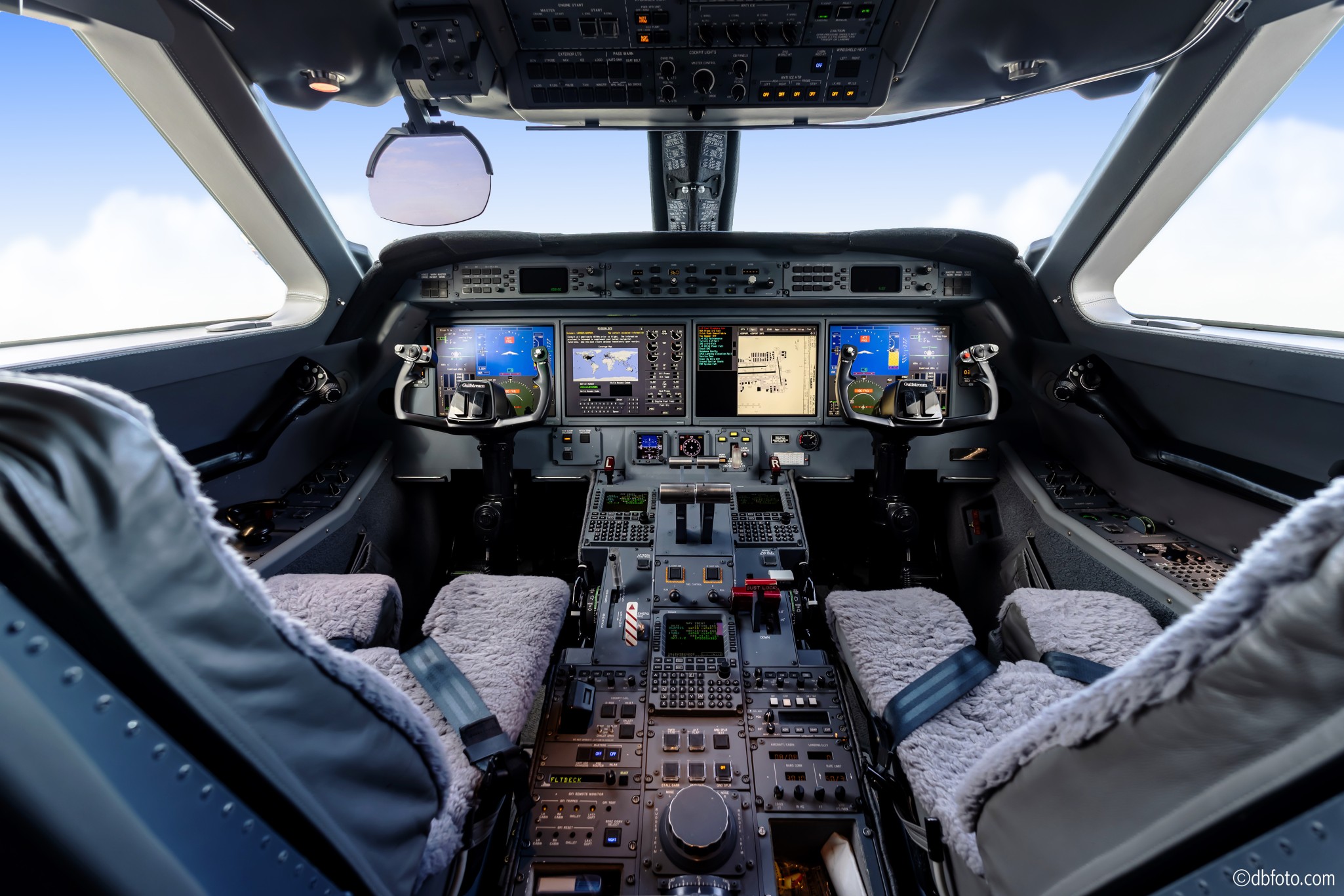

• Honeywell Primus Epic PlaneView® Cockpit with Enhanced Navigation Package
• AIR DATA COMPUTER: Triple Honeywell AZ-200 Air Data Modules
• AUTOMATIC DIRECTION FINDER: Dual Honeywell DF-855 ADF Modules
• AUTOTHROTTLES SYSTEM: Yes
• COCKPIT VOICE RECORDER: CVR-120R with embedded RIPS (120 minutes)
• COMMUNICATIONS: Dual Honeywell TR-865A and Third Honeywell NC-860A Comm Modules
• DATA MANAGEMENT UNIT: Honeywell DL-700 DMU
• DIGITAL CLOCK: Dual Davtron Digital Clocks
• DISTANCE MEASURING EQUIPMENT: Dual Honeywell DM-855 DME Modules
• ELECTRONIC FLIGHT INSTRUMENT SYSTEM: Four Honeywell DU-1310 Flat Panel Displays
• EMERGENCY LOCATOR TRANSMITTER: Artex C406-N ELT

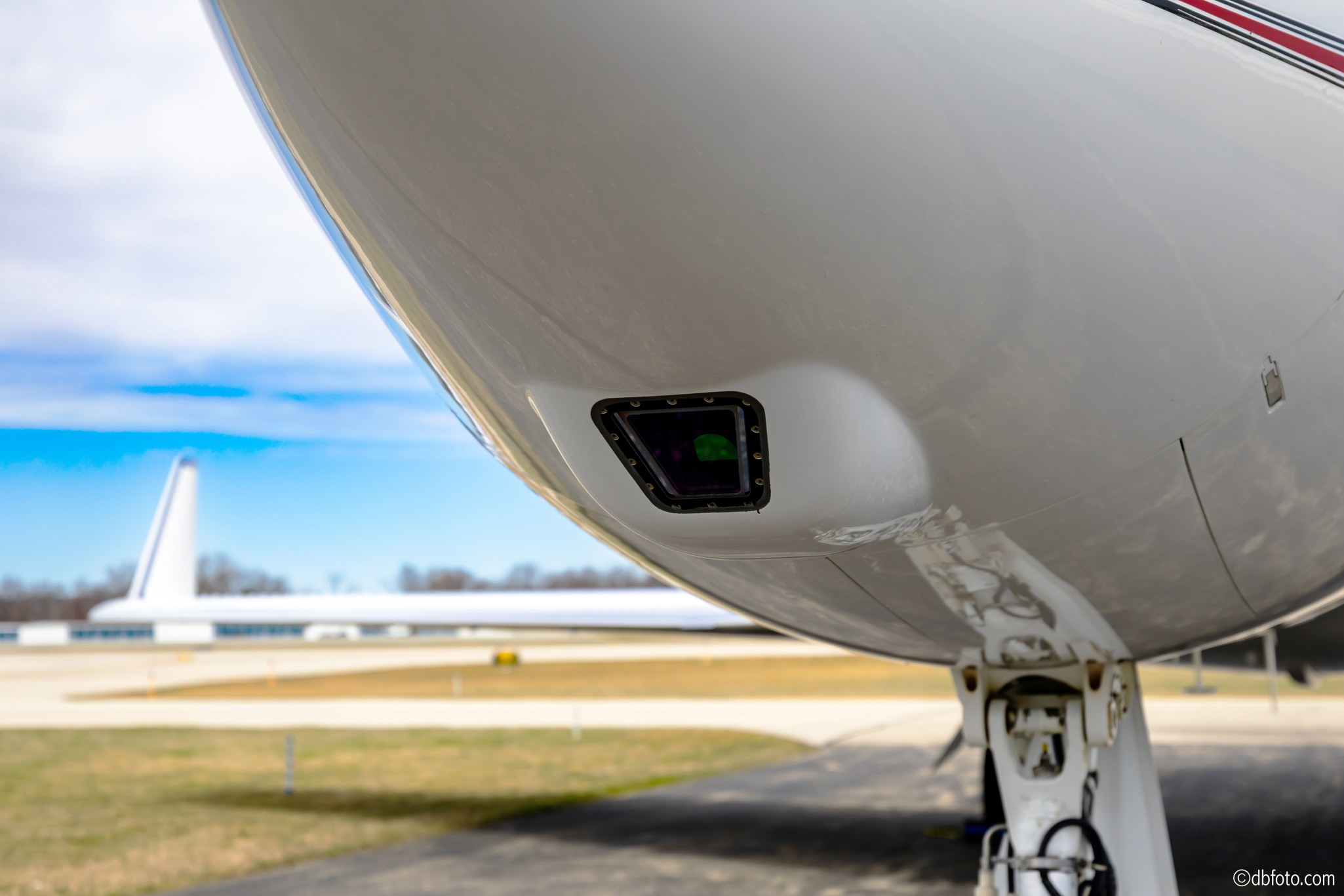

• ENHANCED VISION SYSTEM: Honeywell / Kollsman Enhanced Visual Guidance System EVS
• FLIGHT DATA RECORDER: Universal Avionics FDR-25
• HEADS UP DISPLAY: Honeywell HUD System
• HIGH FREQUENCY RADIO: Dual Rockwell Collins HF-9034A Receiver/Transmitters
• LIGHTNING SENSOR: Honeywell LP-850 Lightning Sensor System
• LONG RANGE NAVIGATION: Triple Honeywell IRU’s
• NAVIGATION: Dual Honeywell NV-875A Nav Modules
• QUICK ACCESS RECORDER: Micro QAR 200
• RADIO ALTIMETER: Dual Honeywell RT-300 Radio Altimeters
• TRAFFIC COLLISION ALERT & AVOIDANCE SYSTEM: ACSS RT-951 TCAS Processor w/Change 7.0
• TERRAIN AWARENESS and WARNING SYSTEM: Dual Honeywell EGP-100 EGPWS Modules
• TRANSPONDER: Dual Honeywell XS-858B Mode S Transponders with ADS-B Out Version 2
• WEATHER RADAR: Honeywell WU-880 Radar Receiver/Transmitter

Add’l Features

• Airshow 4000
• Rockwell Collins CMS
• Dual Rockwell Collins DVD Player
• 3 External Cameras

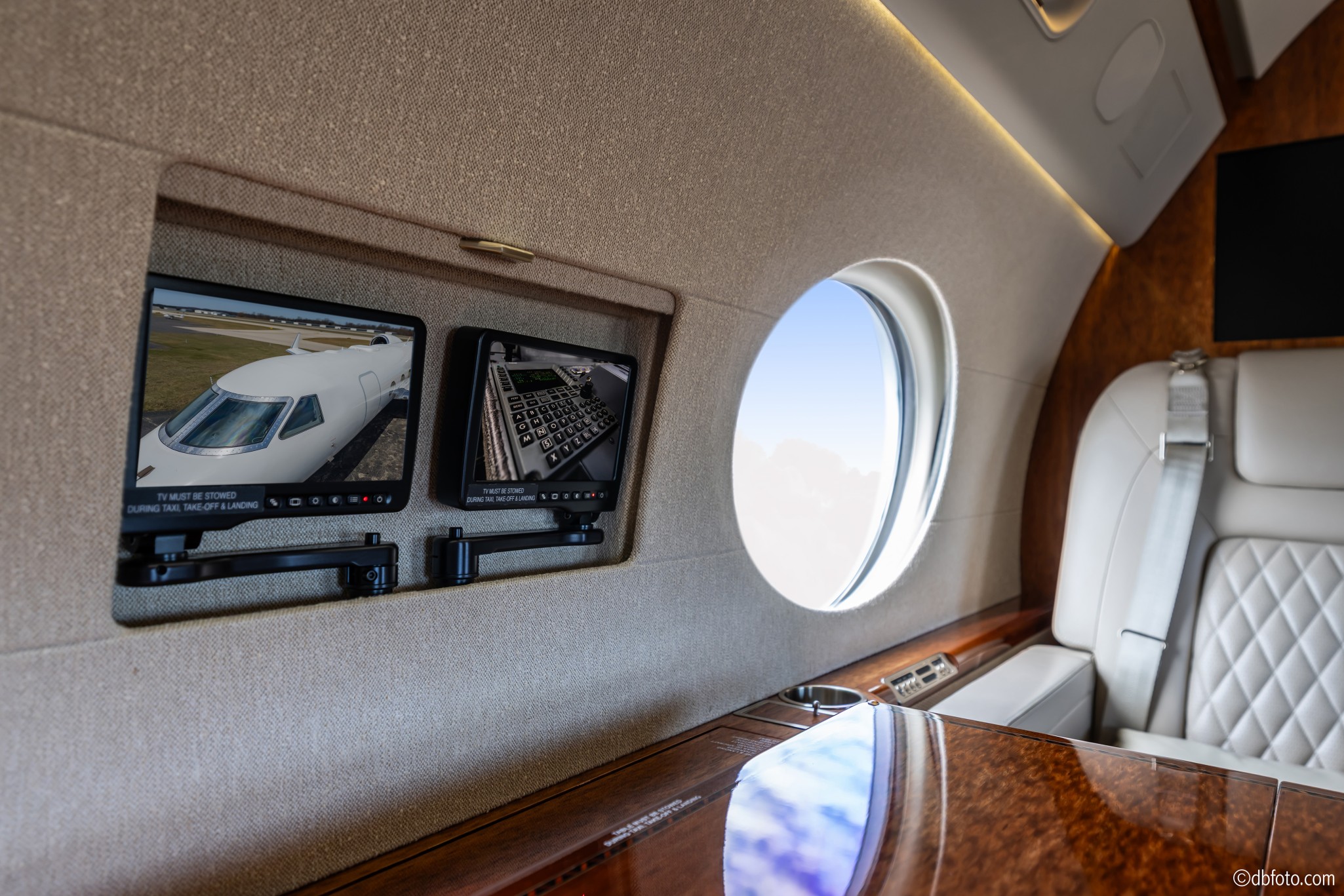

• (8) 7” Rosen Sidewall Mounted Monitors
• Forward Bulkhead and Credenza Monitors
• Honeywell HD-710 Swift Broadband High Speed Data
• Aircell ATG 4000 High Speed Internet
• (1) Cockpit Wired Handset
• (2) Cabin Wireless Handsets
• Talon Aerospace LED Nav Light
• Starlink
• Forward Storage Closet

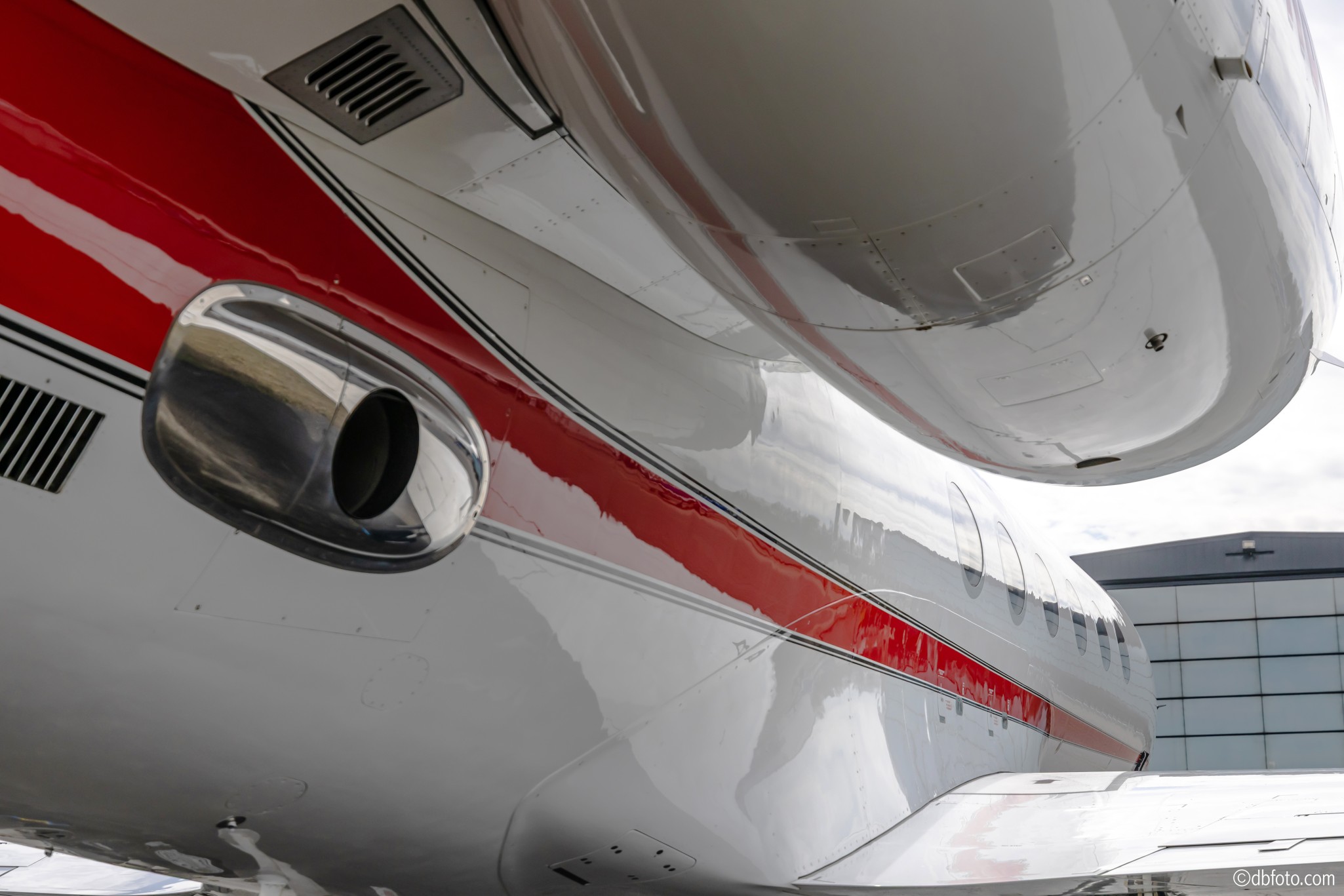

Exterior

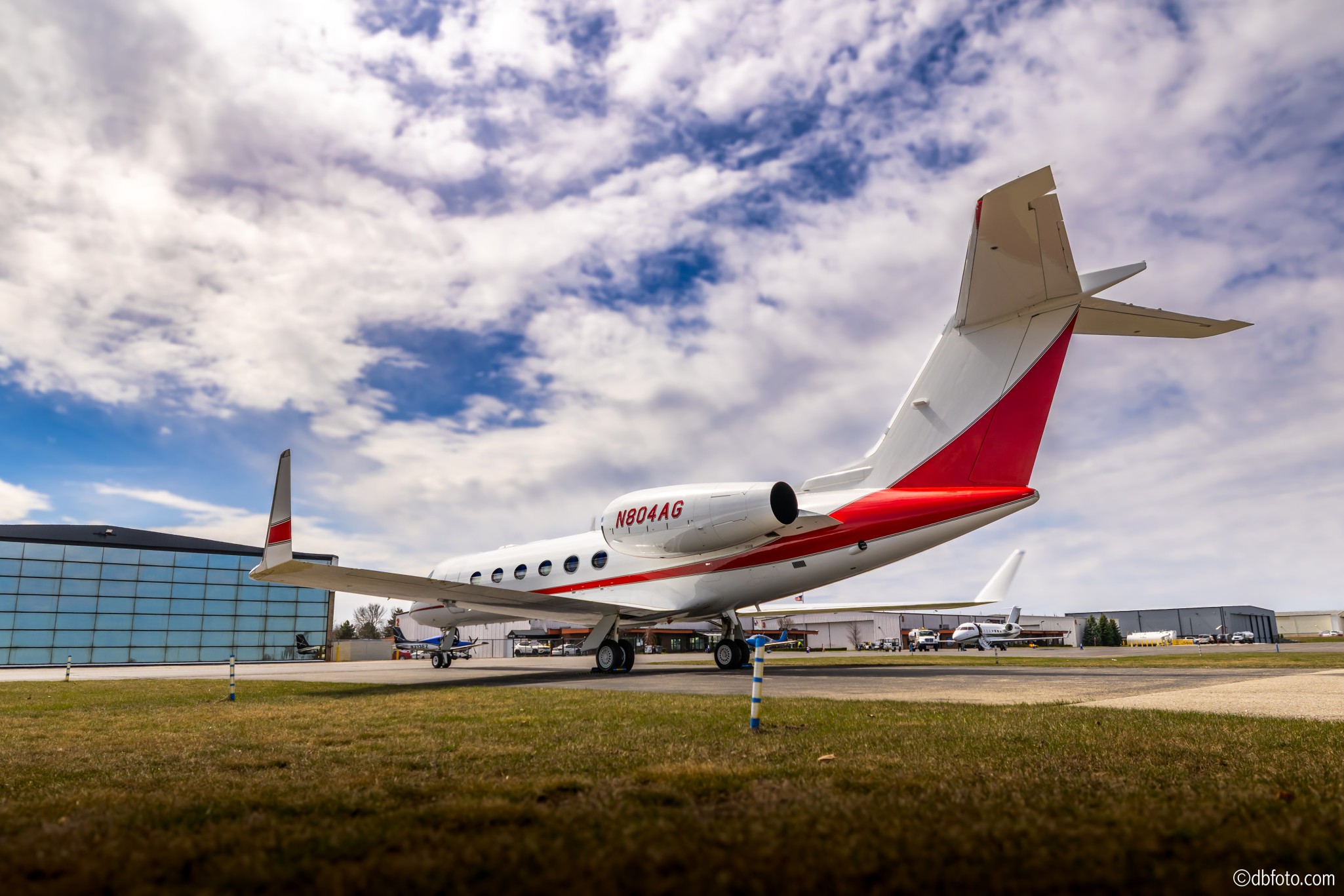

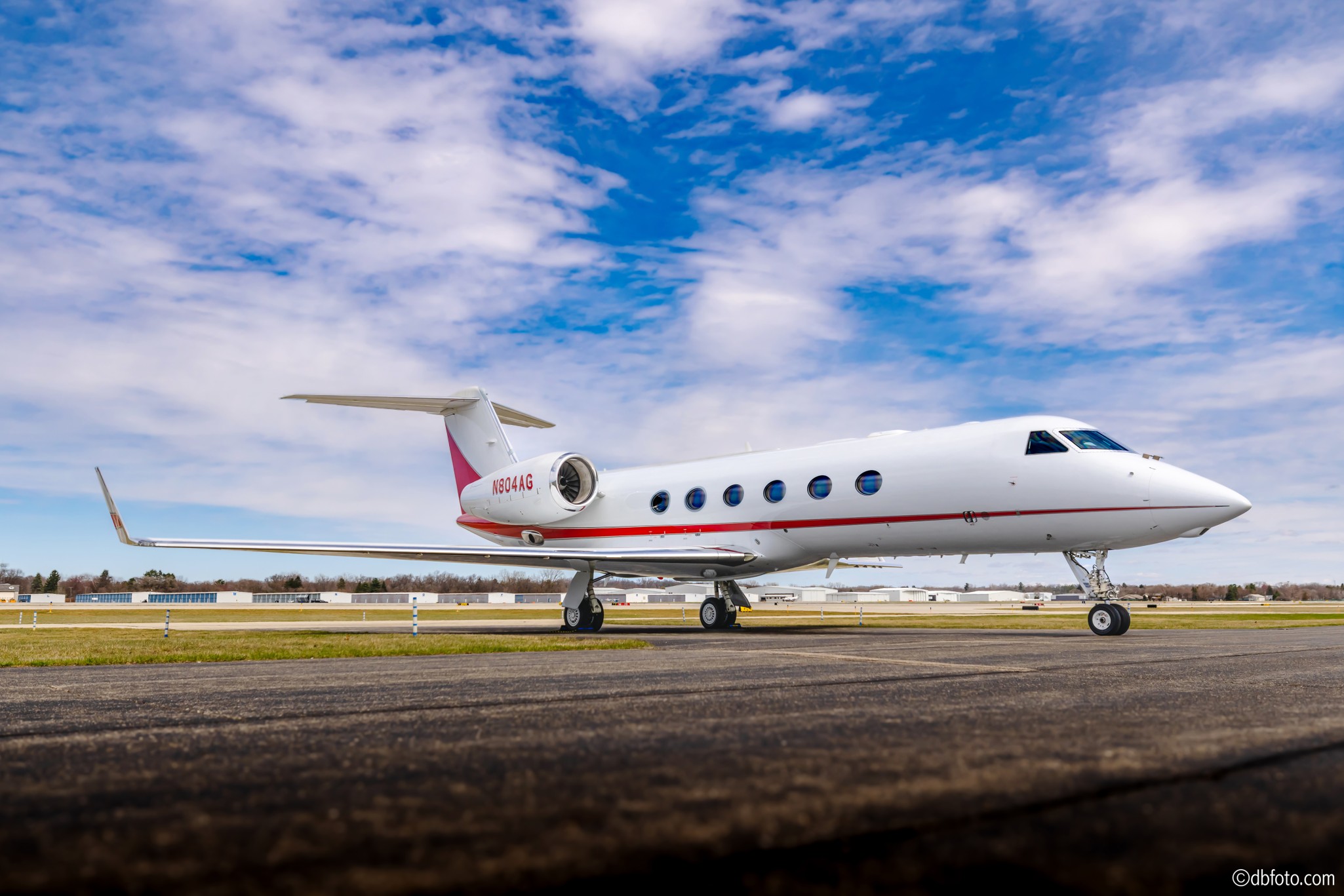

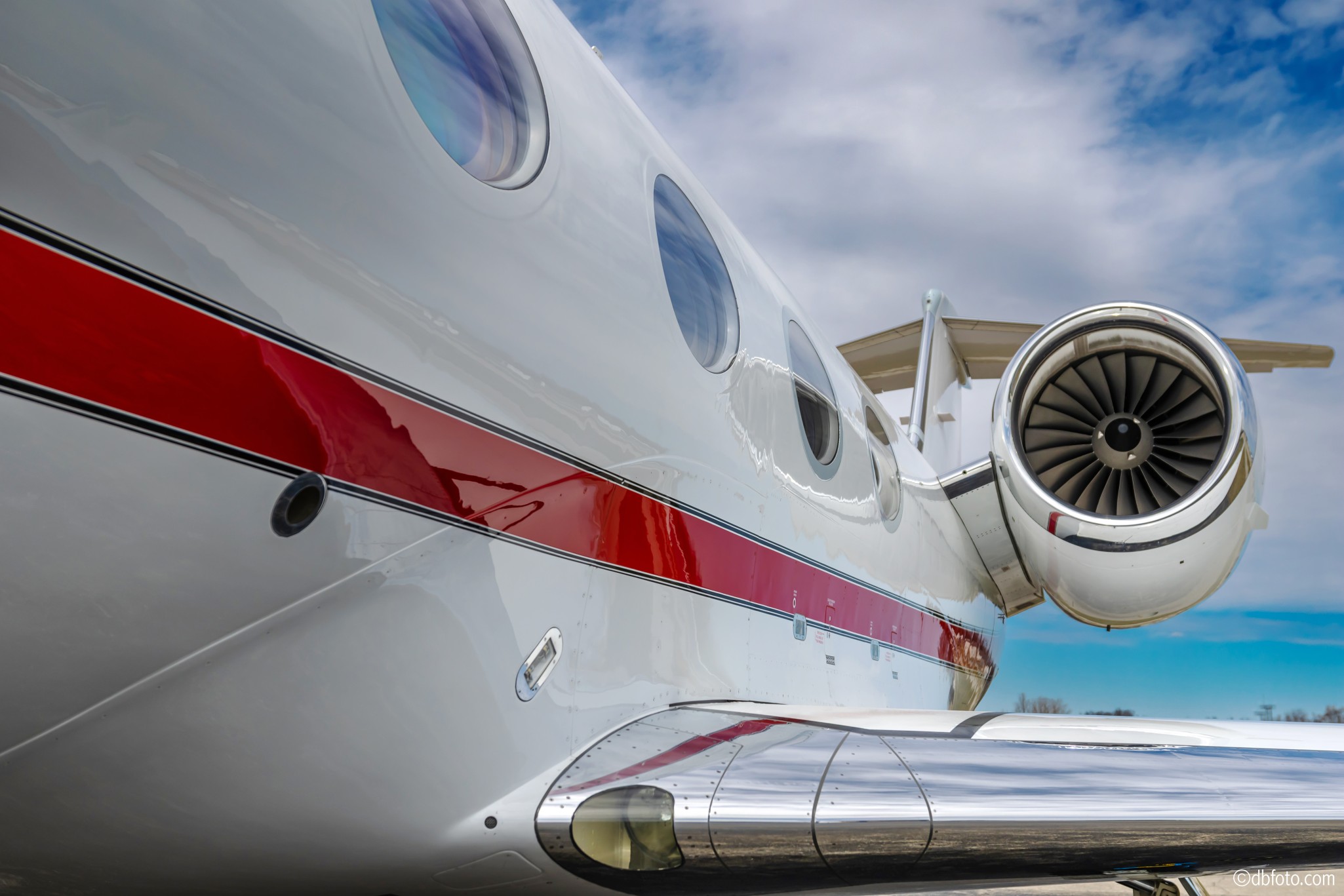

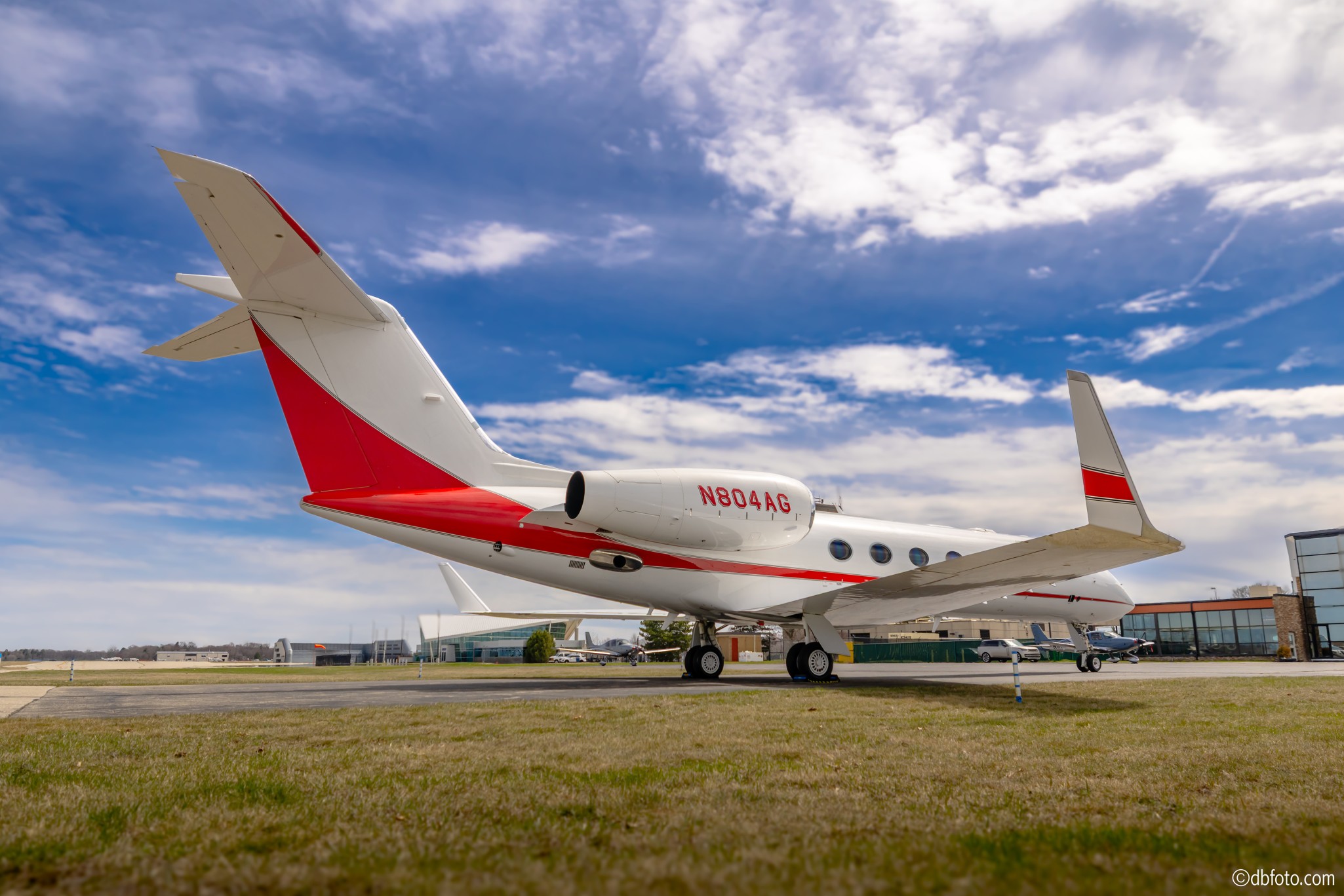

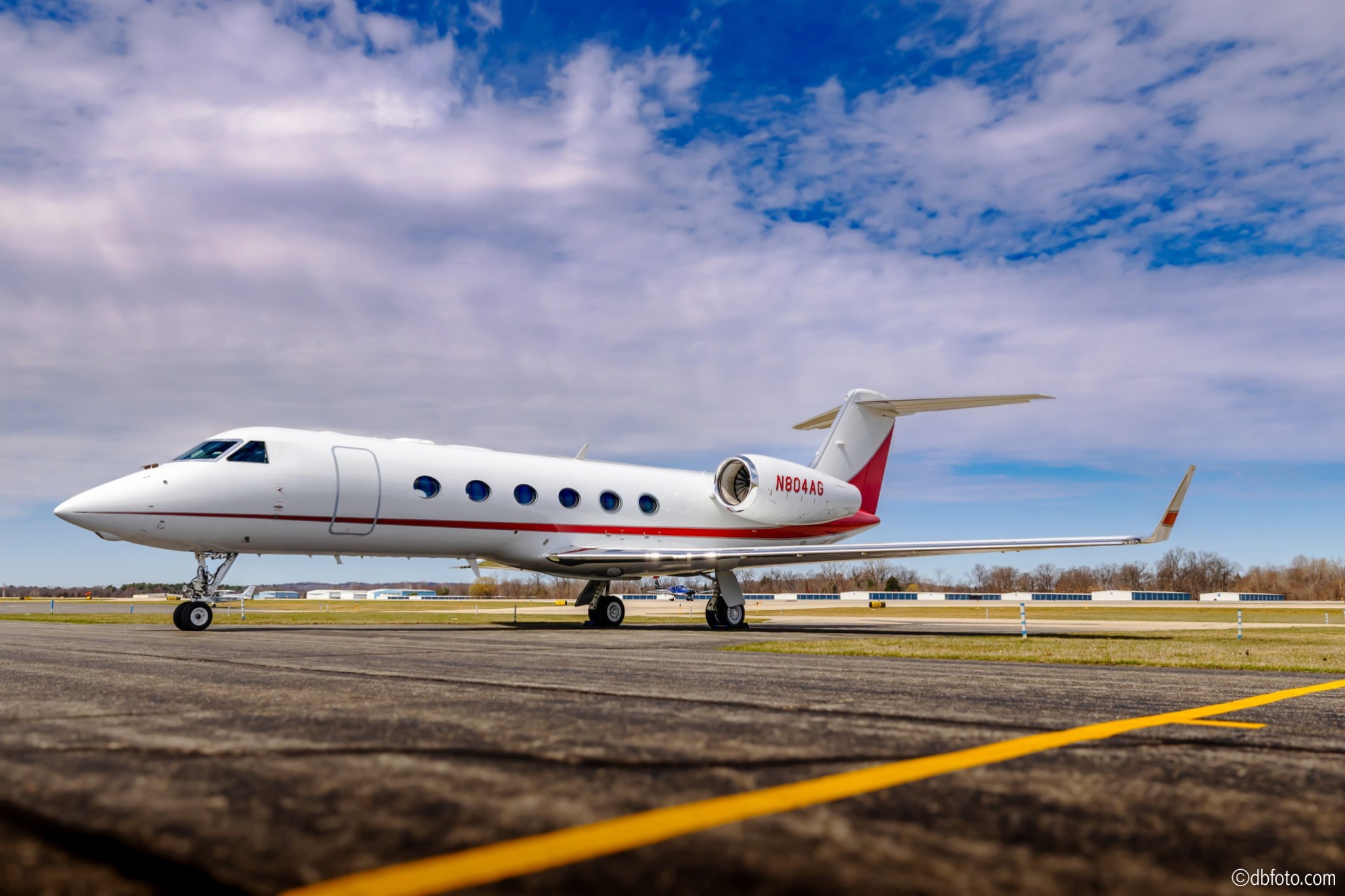

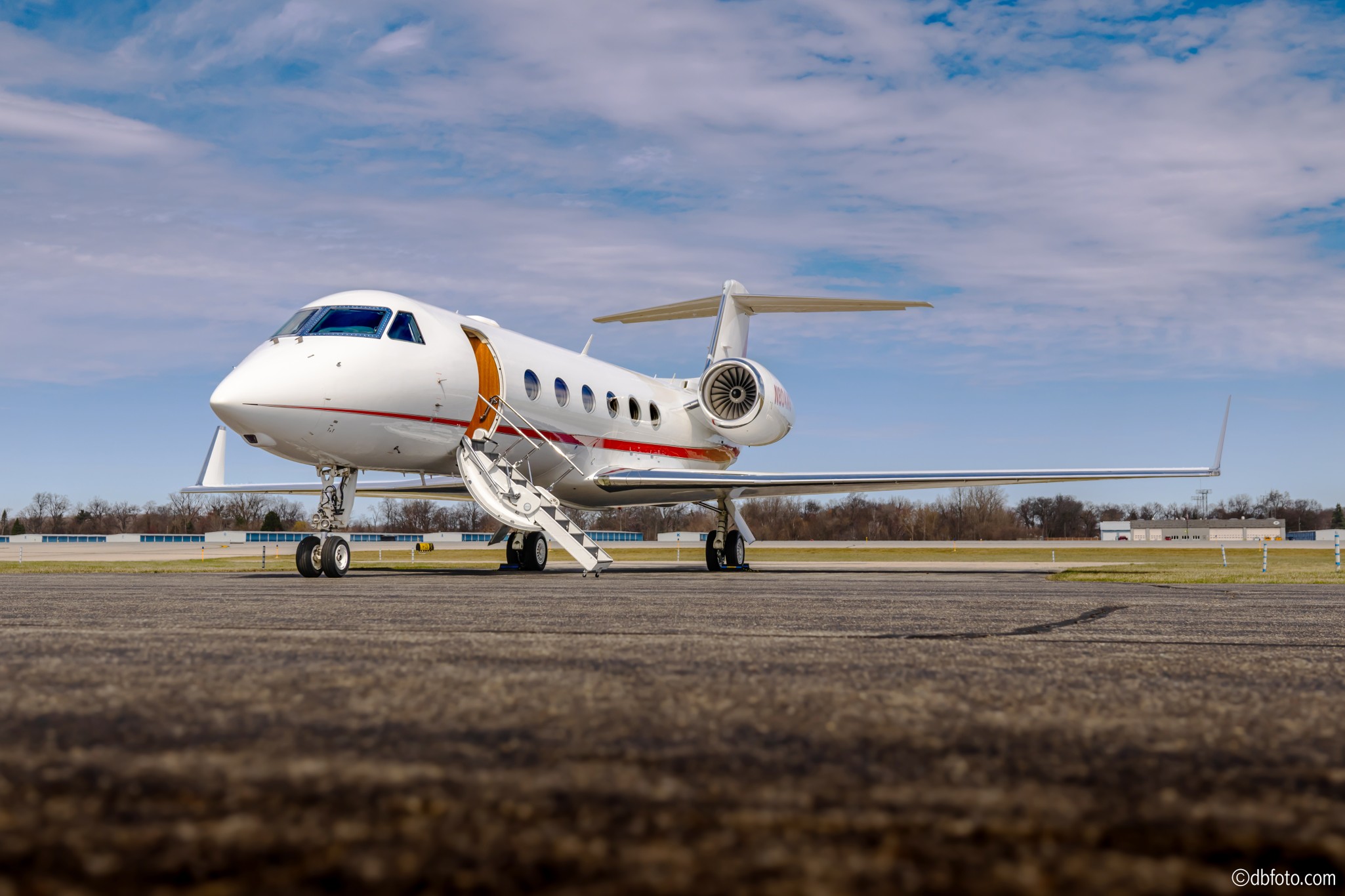

Paint completed in October, 2018 by Gulfstream, Appleton - Overall Matterhorn White with Express Kingston Gray, Express Sunfast Red & Gloss Black Stripes, with ceramic coating

Interior

• Seats re-covered at Gulfstream, Appleton in 10/2018 & Minor refurb July 2021

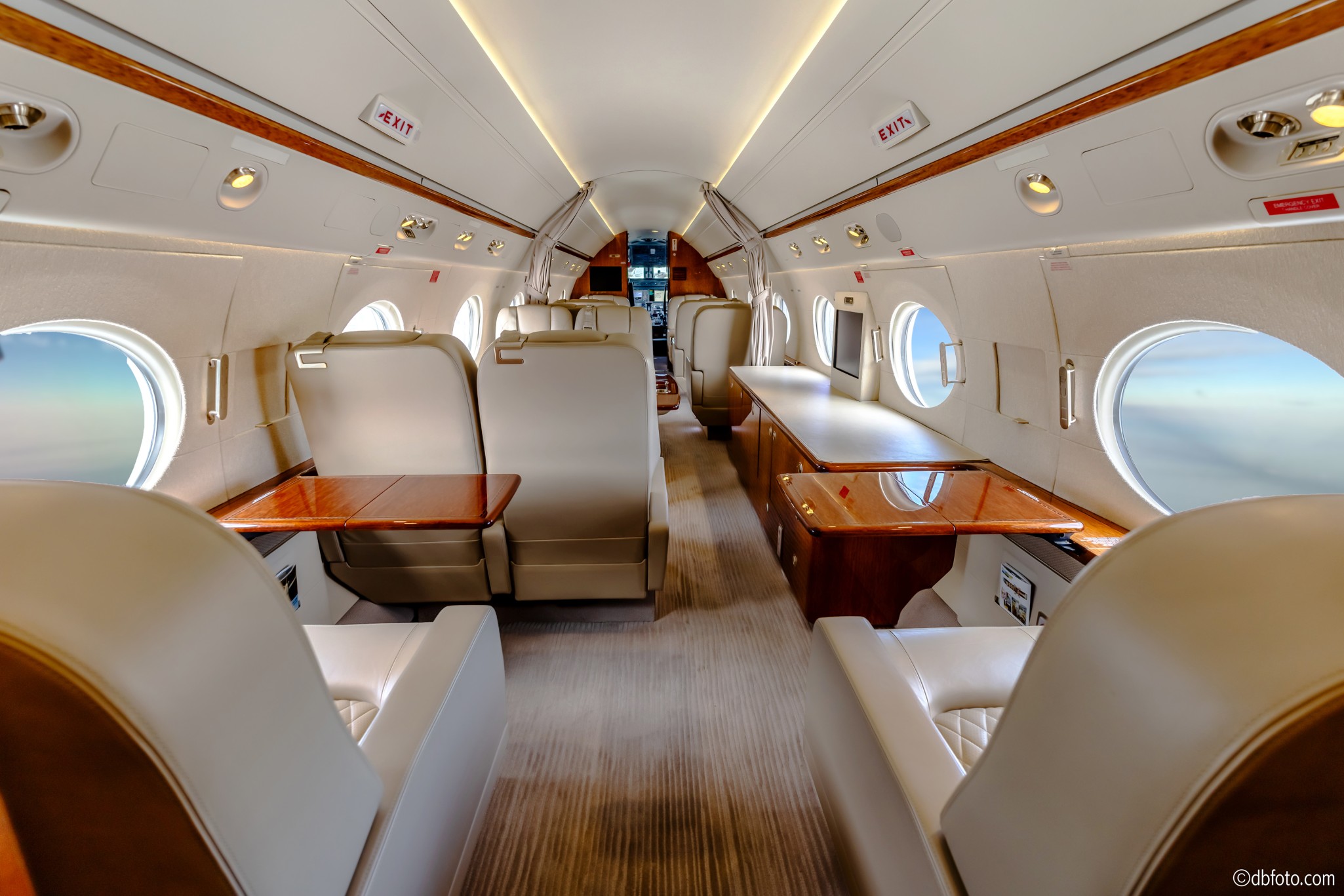

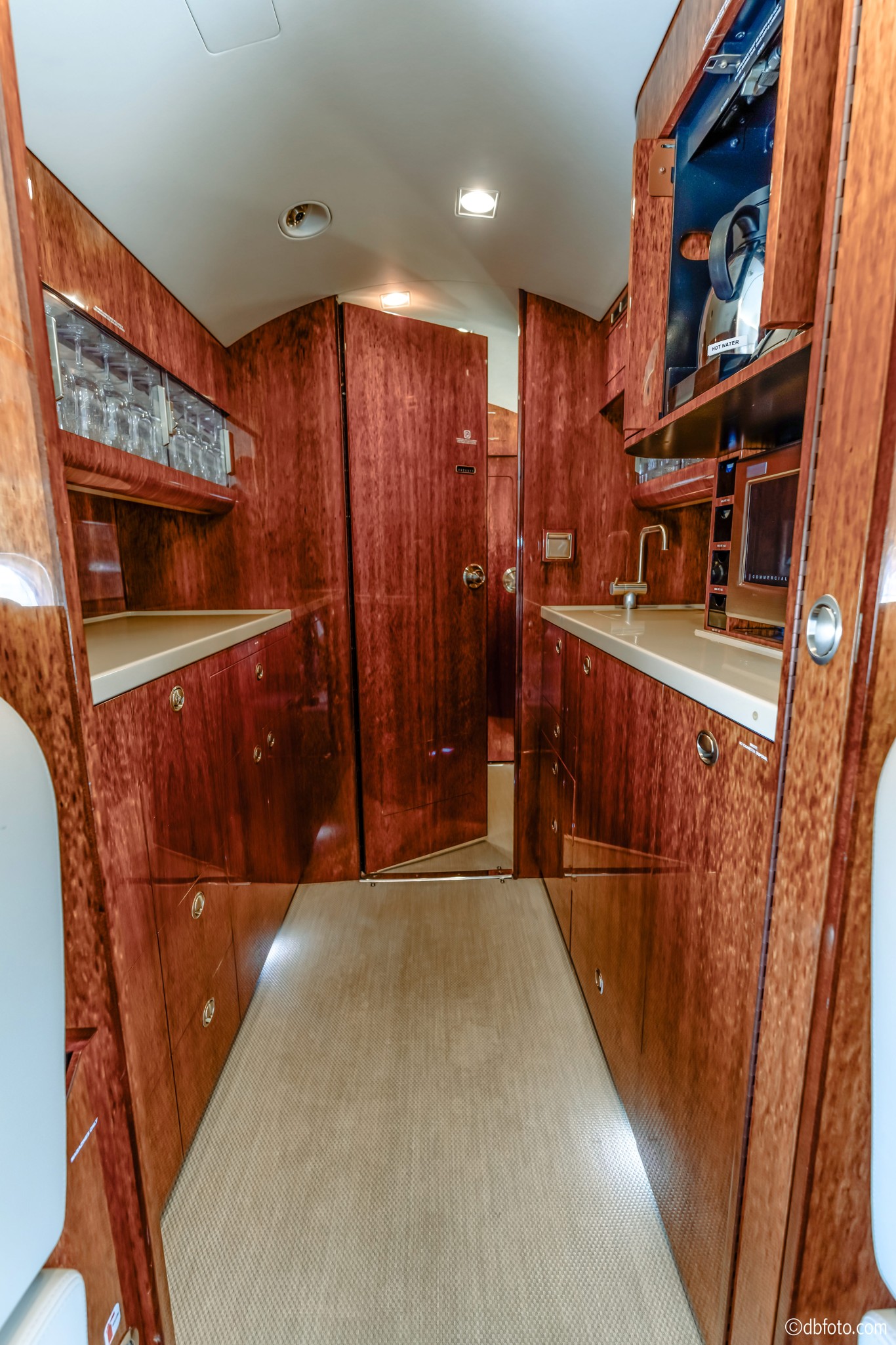

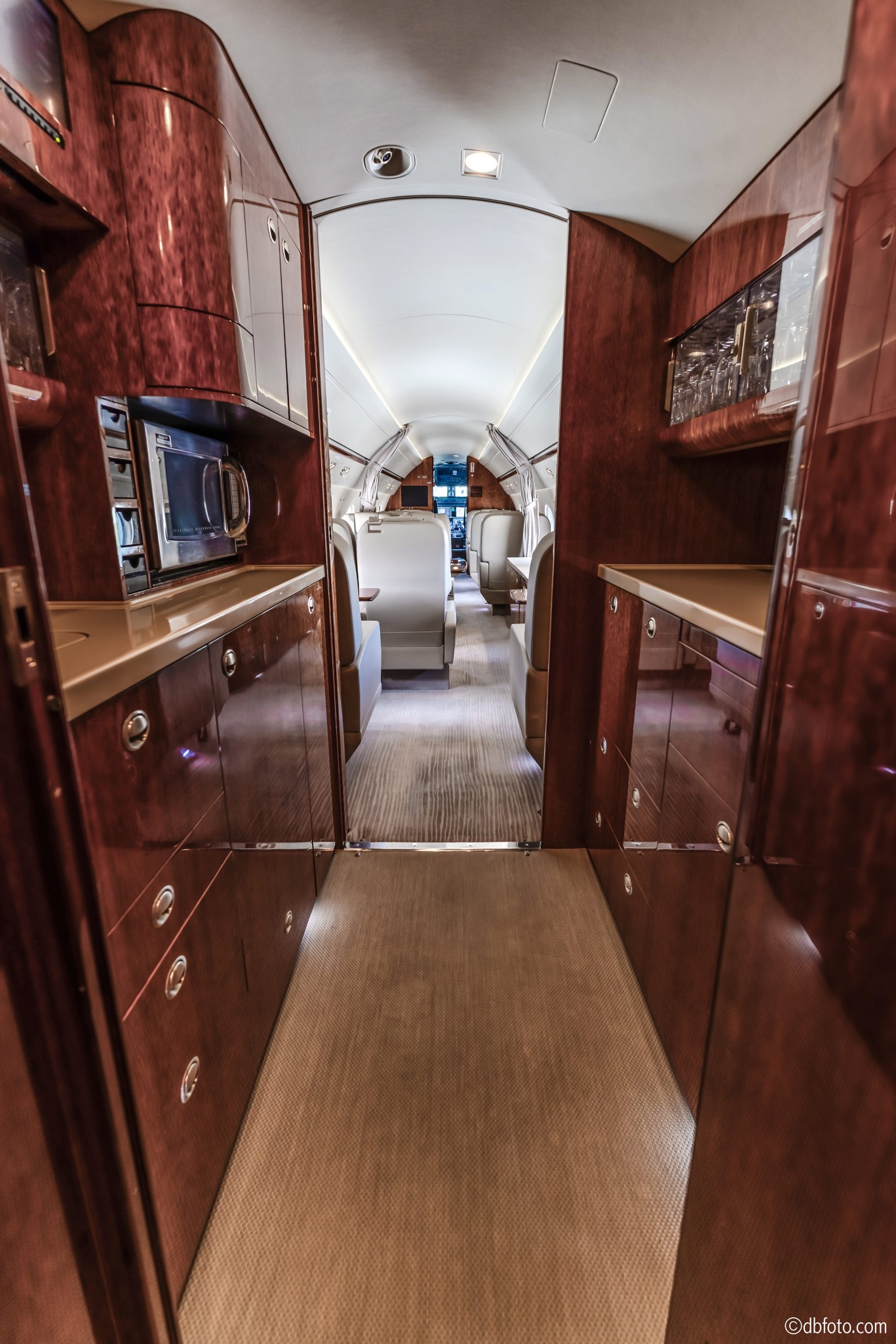

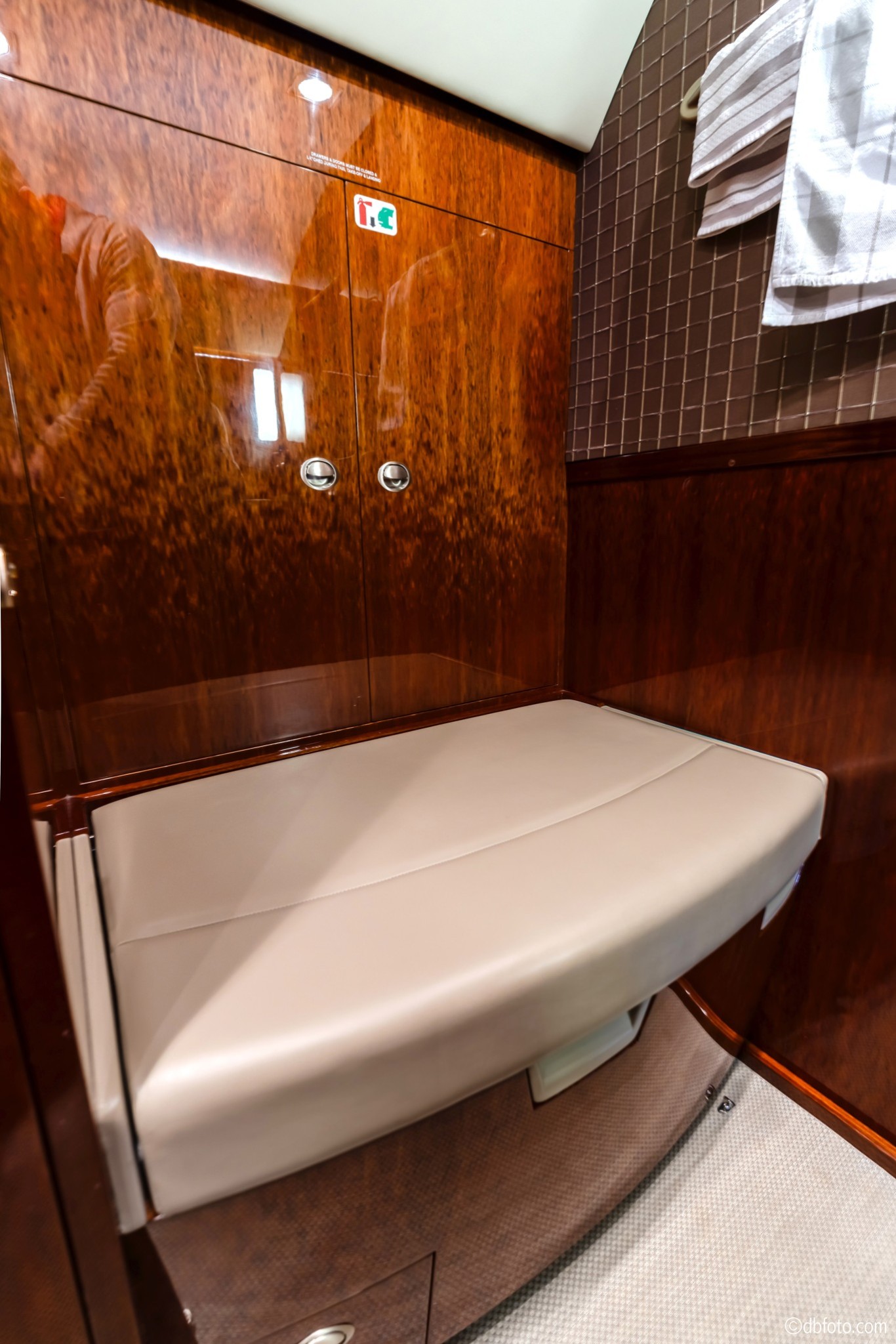

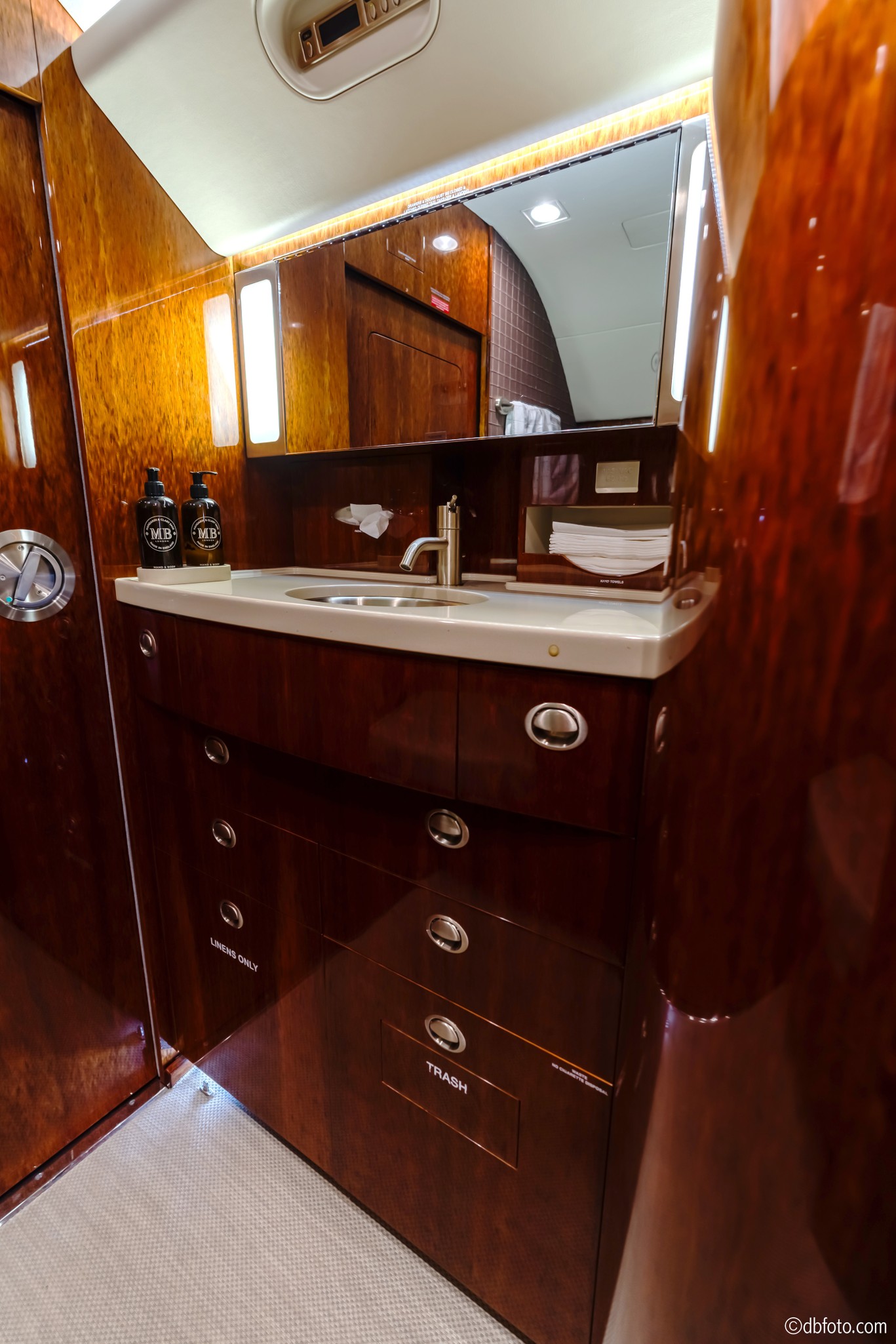

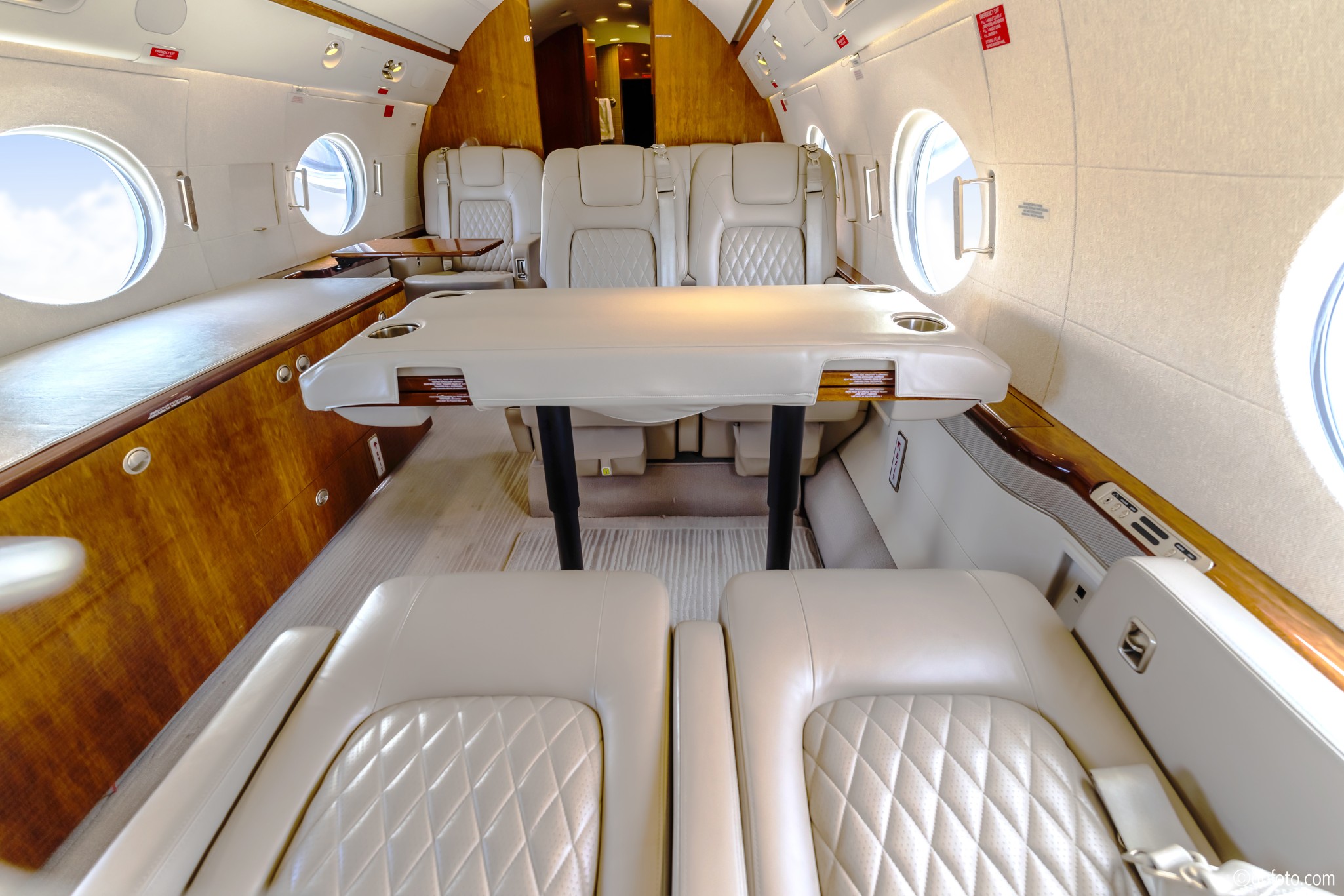

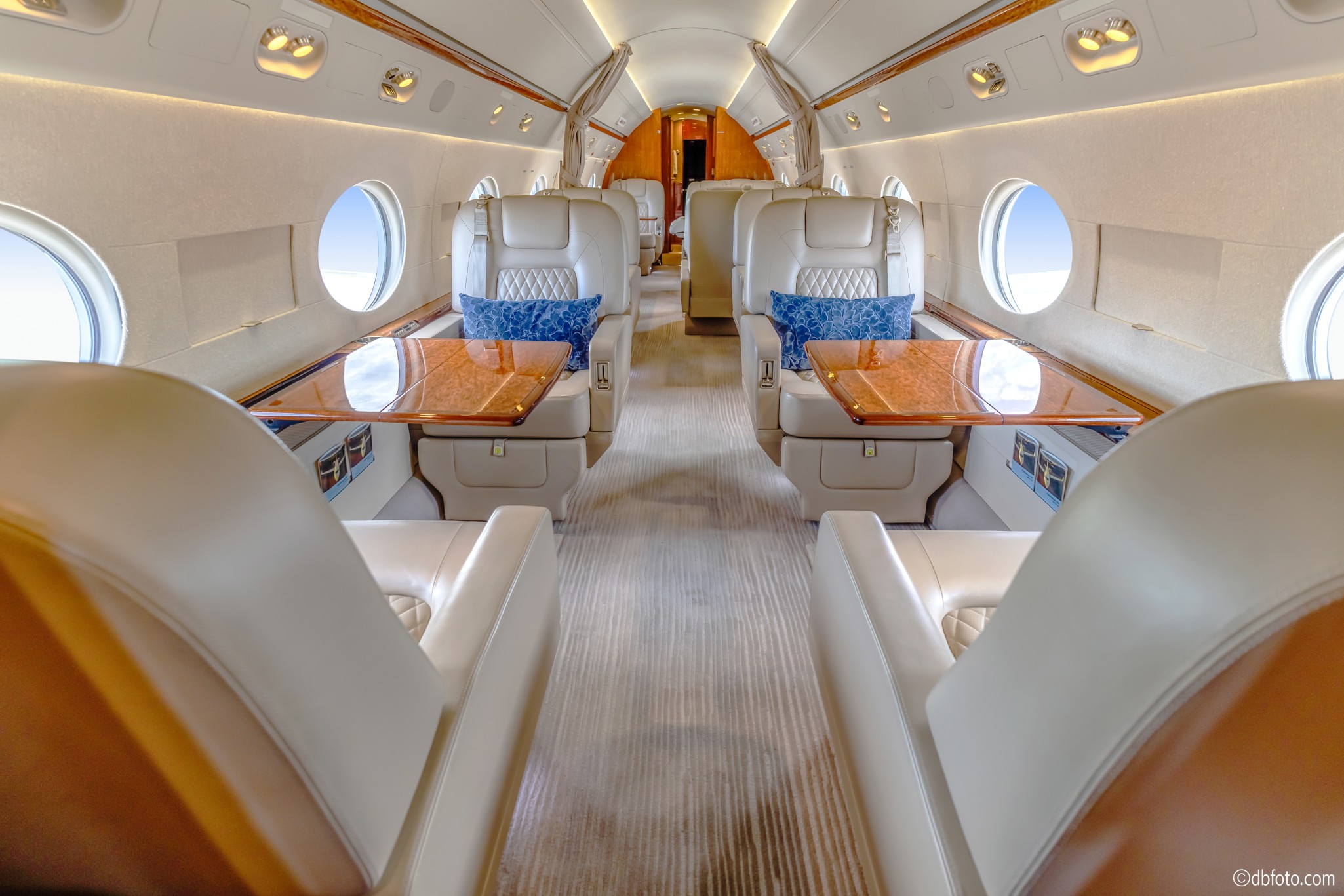

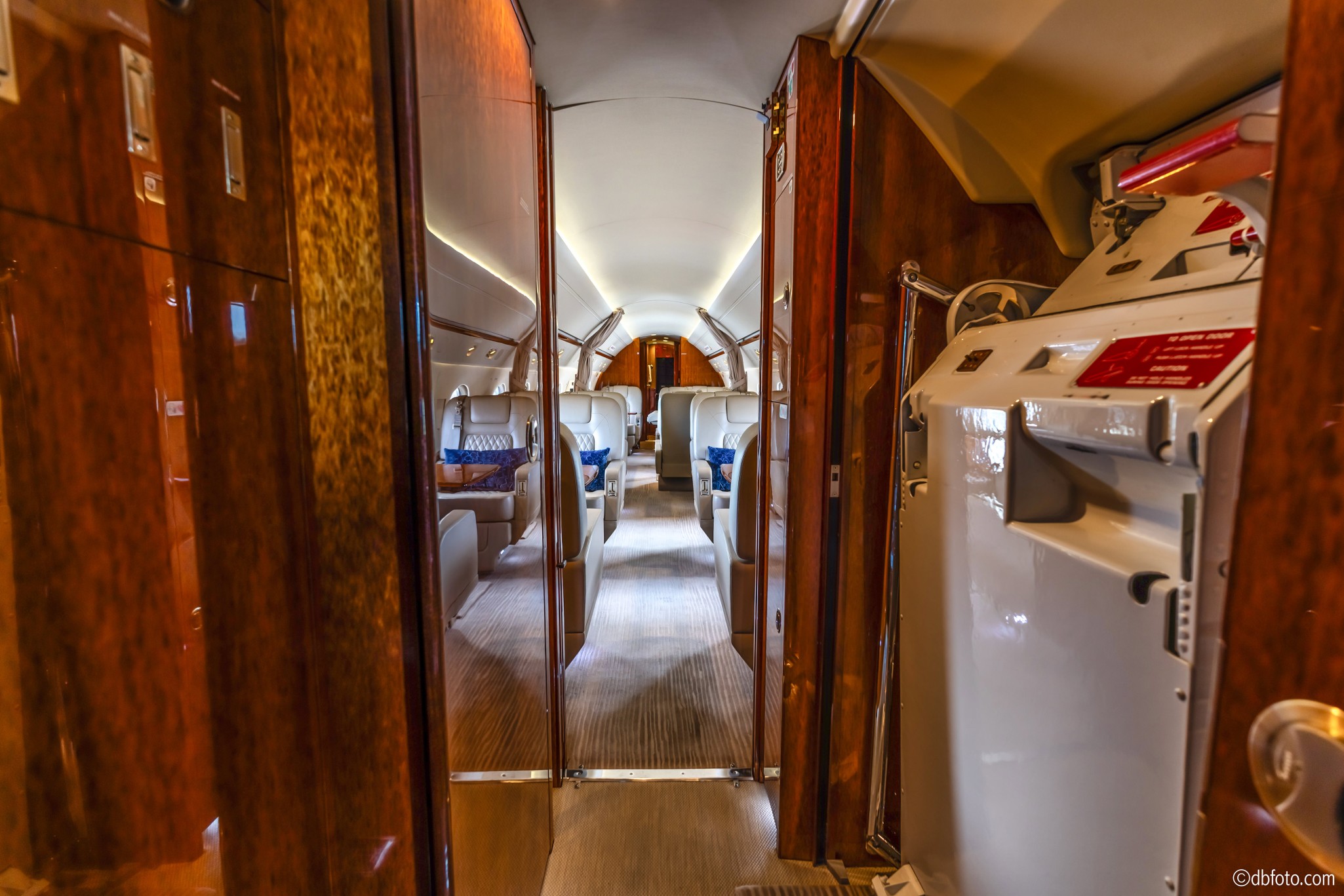

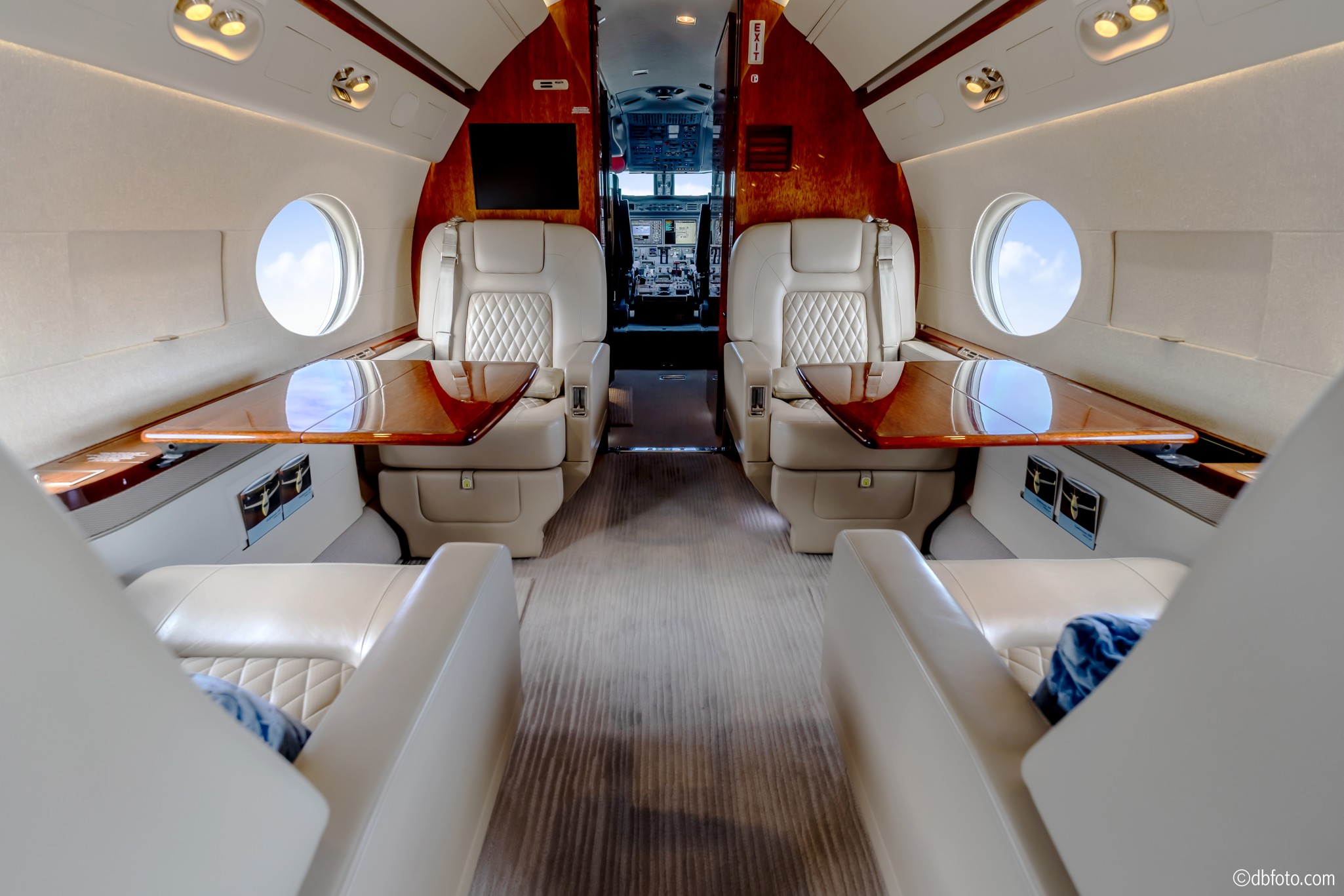

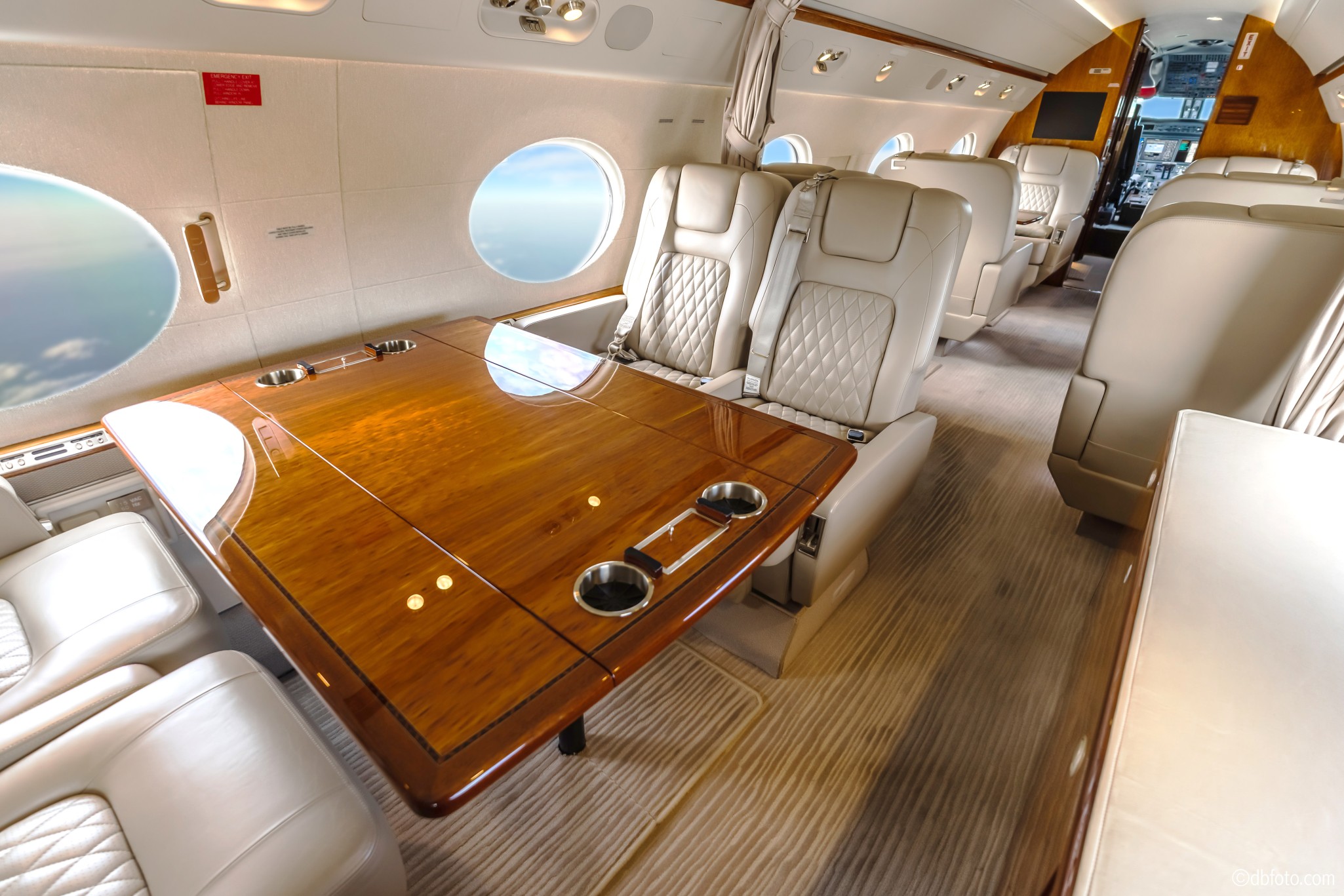

• The beautiful 12 passenger Tailored configuration features an aft galley, cockpit jumpseat, a spacious aft lavatory, and in-flight accessible baggage bay. The spacious cabin includes forward six-place club, followed by a mid-cabin four-place conference group opposite a large credenza. The aft cabin is equipped with two forward facing single seats. Pommele Etimoe Veneer. Additional Storage Closet in place of Forward Lav.

Notable ASCs

• ASC 007D Maximum Landing Gross Weight – 58,500 Pounds
• ASC 008A Maximum Zero Fuel Gross Weight 48,000 Pounds
• ASC 016A Maximum Take-Off Gross Weight (MGTOW) Increase
• ASC 021A Lightning Sensor System Installation
• ASC 025 Planeview Communication Management Function – Datalink Service Provider
• ASC 037B Synthetic Vision – Primary Flight Display (SV/PFD) Installation
• ASC 040A Runway Awareness Advisory System (RAAS) Installation
• ASC 046 Micro Quick Access Recorder (MQAR) Installation
• ASC 059D Enhanced Navigation
• Future Air Navigation System (FANS 1/A+) CPDLC
• Wide Area Augmentation System (WAAS) w/ LPV Approaches
• Circling Approaches
• Temperature Compensated VNAV
• Peaks Display
• Electronic Terminal Charts (Certified Paperless Flight Deck)
• ASC 060A XM Weather
• ASC 077 TCAS 7.1 Installation
• ASC 079 Automatic Dependent Surveillance – Broadcast (ADS-B) Out Install v2 (DO-260B)
• ASC 099C PlaneView Avionics Enhancement
• ASC 106 8.8kHz Underwater Acoustic Beacon (UAB) Installation

Maintenance

• Inspection Done Due
• 1C (12 month) Jul 24 Jul 25
• 2C (24 month) Jul 24 Aug 26
• 3C (36 month) Jul 22 Jul 25
• 4C (48 month) Nov 22 Oct 26
• 6C (72 month) Nov 22 Oct 28
• 8C (96 month) Aug 18 Aug 26
• 12C (144 month) Nov 22 Oct 34
• 16C (192 month) — Oct 26
• 500hr 3607 hrs 4107 hrs
